Part Number:TMDSLCDK138
Tool/software: TI-RTOS
Hi.
We bought the OMAP L138 LCDK + the X100 v2 emulator.
We ran the Mcasp Loopback demo, after defining the SAMPLE_RATE to be 96000u,

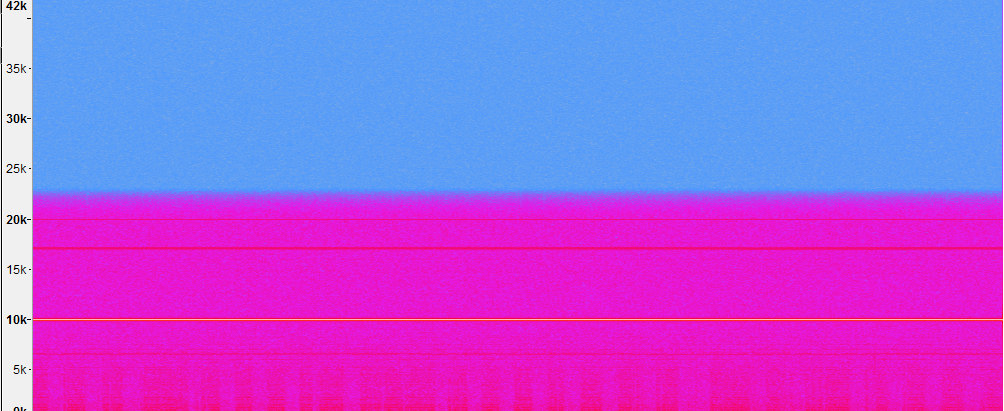

However, when we insert an input signal which is above 23-24khz nothing comes out.
Below, 23-24 khz - it passes alright.
I'm very afraid that some creative engineer decided to put a low pass filter somewhere at the output.
Our system processes 40khz signals (ultrasound), so we must have it work.
We need your assistance to make it happen. Is it a code configuration thing, or a hardware filter that we need to disable?
